Features

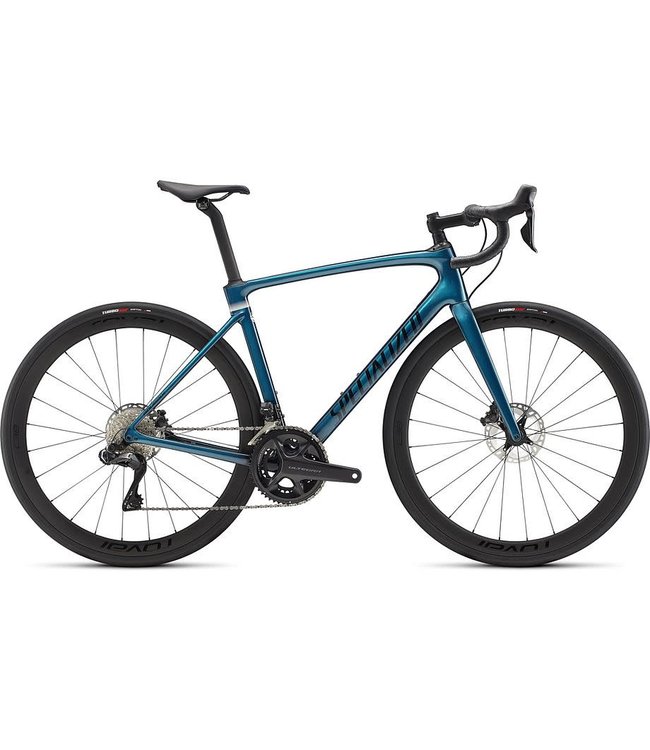

With seven wins at Paris-Roubaix, our Roubaix has proven that Smoother is Faster. Until this moment, however, smooth has admittedly come with some compromises. But not anymore. The all-new Roubaix Expert now delivers compliance without compromise by introducing a radical new Future Shock 2.0 that gives you more control and damping options, a new Pavé seatpost that creates our most balanced Roubaix to date, aerodynamics that equal the Tarmac, and a Rider-First Engineered™ frame that’s shed some serious weight. Is it still comfortable? Sure, but don’t call it a comfort bike, because performance was behind every engineering decision we made. This is the new Roubaix.
For the build, we spec’d the Expert with Shimano Ultegra Di2 for its powerful hydraulic disc brakes and super crisp 11-speed shifting. Of course, you’ll be rolling on sturdy wheels courtesy of a Roval C38 wheelset.
- The new frame delivers compliance without compromise via the perfect balance of aerodynamics, light overall weight via a FACT 10r carbon construction, compliance, and Rider-First Engineering. With tube shapes that were born in our FreeFoil Shape Library and validated in the Win Tunnel, the new Roubaix is more aero than the Tarmac SL6. Meanwhile, to ensure the weight and ride quality, we turned to a Rider-First Engineered™ design to deliver optimal stiffness and compliance across all sizes, from 44 to 64cm. Of course, the frame has shed some serious weight in the process. And to prep you for your own Hell of the North, we’ve made room for 33mm tires.
- To go along with the new frame, we’ve also developed a totally-new S-Works Pavé seatpost. Not only is it the first compliant seatpost that’s also aerodynamic, it does so without any additional weight or finicky contraptions. Starting with the same D-shape design found on the Tarmac, we took its compliance a step further by building additional flex into the upper and developing a new drop-clamp design in the frame. This provides plenty of compliance, while staying perfectly balanced with the front-end, so you get a smooth, balanced ride no matter how rough the road.
- The Future Shock 2.0 is the result of our pro riders’ demands for the cobbles of Roubaix. It’s smoother, faster, and gives you more control via a knob atop the stem. This knob adjusts compression from fully-open to stiff, while hydraulically-damped internals control rebound. Add it up, and this latest version will reduce fatigue and increase your speed, no matter the terrain. The new Smooth Boot, top cap, and Future Stem also enhance the aesthetic, so you get a clean transition from head tube to stem.
BIKE SPECS
Frame - FACT 10R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc
Fork - Future Shock 2.0 w/ Smooth Boot, 12x100mm thru-axle, flat-mount disc
Handlebars - Specialized Hover Expert, Alloy, 125mm Drop, 75mm Reach w/Di2 Hole
Tape - Supacaz Super Sticky Kush
Front Brake - Shimano Ultegra R8170, hydraulic disc
Rear Brake - Shimano Ultegra R8170, hydraulic disc
Seat Binder - Hidden drop clamp
Shift Levers - Shimano Ultegra R8170, hydraulic disc
Front Derailleur - Shimano Ultegra R8150, braze-on
Rear Derailleur - Shimano Ultegra R8150, 12-speed
Cassette - Shimano Ultegra, 12-speed, 11-34t
Crankset - Shimano Ultegra R8100
Bottom Bracket - Shimano Threaded BSA BB
Chain - Shimano Ultegra, 12-speed
Front Wheel - Roval C38, 21mm internal width carbon rim
Rear Wheel - Roval C38, 21mm internal width carbon rim
Front Tire - Specialized Turbo Pro, 700x30mm
Rear Tire - Specialized Turbo Pro, 700x30mm
Saddle - Body Geometry Power Expert, titanium rails
Inner Tubes - Presta, 48mm valve
Geometrey
|
44 |
49 |
52 |
54 |
56 |
58 |
61 |
64 |
BB Drop |
77.5 |
77.5 |
77.5 |
76 |
76 |
74.5 |
74.5 |
74.5 |
BB Height |
265 |
265 |
265 |
266 |
266 |
268 |
268 |
268 |
Bike Standover Height |
682 |
715 |
743 |
762 |
783 |
805 |
844 |
862 |
Chainstay Length |
413 |
413 |
413 |
415 |
415 |
418 |
418 |
418 |
Crank Length |
165mm |
165mm |
170mm |
172.5mm |
172.5mm |
175mm |
175mm |
175mm |
Fork Length, Full |
370 |
370 |
370 |
370 |
370 |
370 |
370 |
370 |
Fork Rake/Offset |
50 |
50 |
50 |
44 |
44 |
44 |
44 |
44 |
Front Center |
580 |
581 |
586 |
585 |
592 |
607 |
618 |
626 |
Handlebar Width |
360mm |
380mm |
400mm |
420mm |
420mm |
440mm |
440mm |
440mm |
Head Tube Angle |
70 |
71.5 |
72 |
72.75 |
73.5 |
73.5 |
74 |
74 |
Head Tube Length |
90 |
100 |
112 |
125 |
143 |
170 |
205 |
215 |
Reach |
353 |
363 |
368 |
376 |
384 |
392 |
398 |
404 |
Saddle Width |
155mm |
155mm |
155mm |
143mm |
143mm |
143mm |
143mm |
143mm |
Seat Tube Angle |
74 |
74 |
74 |
74 |
73.5 |
73.5 |
73.5 |
73 |
Seat Tube Length |
365 |
410 |
446 |
465 |
485 |
505 |
547 |
568 |
Seatpost Length |
380mm |
380mm |
380mm |
380mm |
380mm |
450mm |
450mm |
450mm |
Stack |
540 |
555 |
570 |
585 |
605 |
630 |
665 |
675 |
Stem Length |
70mm |
80mm |
90mm |
100mm |
100mm |
110mm |
110mm |
120mm |
Top Tube Length, Horizontal |
512 |
525 |
533 |
545 |
563 |
579 |
595 |
609 |
Trail |
71 |
62 |
59 |
61 |
55 |
55 |
52 |
52 |
Wheelbase |
981 |
982 |
986 |
988 |
995 |
1014 |
1024 |
1033 |
