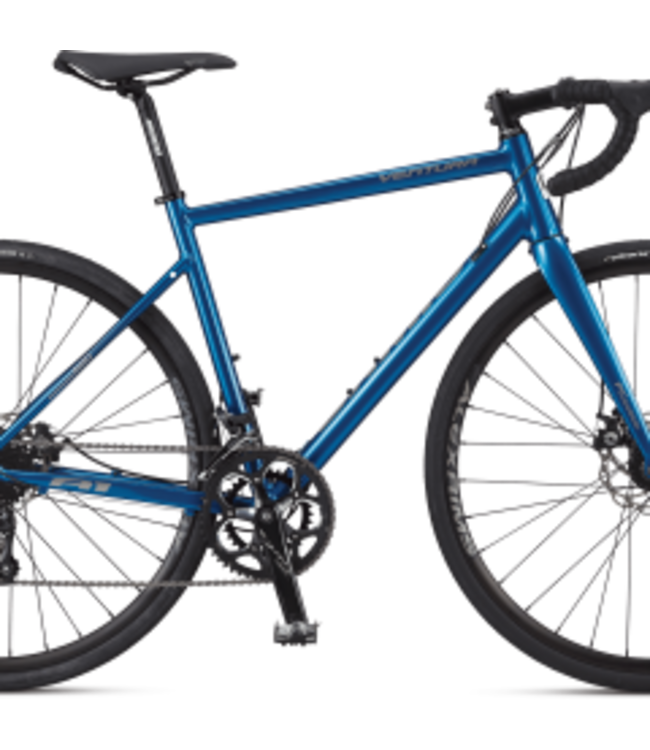

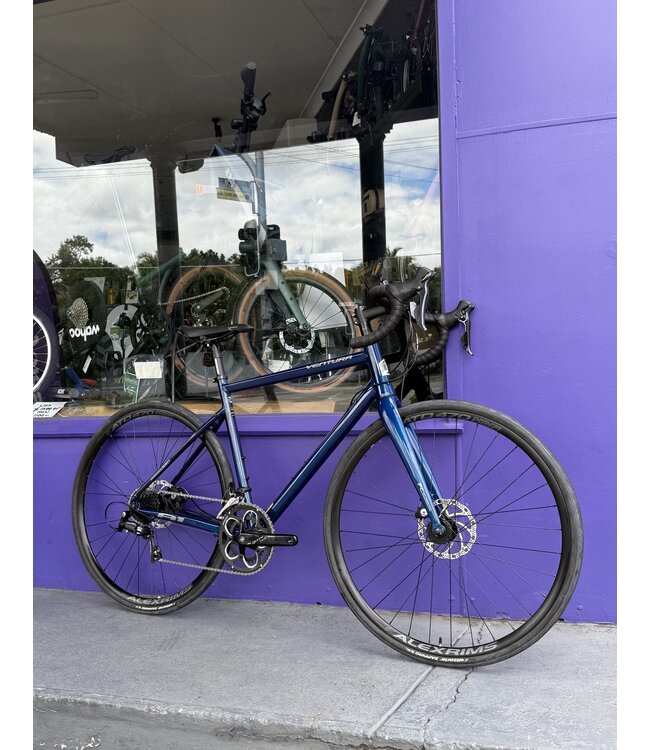

| VENTURE | A1 |
|---|---|
| Frame | Size Specific Design double-butted 6061 aluminum compact sloping top tube frame design with with redesigned rear triangle, SST tubing diameters and internal cable guides, 1 1.5 – 1 1/8” tapered head tube, butted seat tube for 27.2 seat post, flat mount disc brake mount, replaceable derailleur hanger and fender/rack eyelets |
| Fork | Jamis Performance ECO carbon composite with carbon steerer, 1.5” hollow formed crown, monocoque one-piece forming technology, carbon dropouts with stainless tabs, flat mount disc brake mount with internal cable routing, exposed fender eyelets |
| Headset | FSA Integrated, threadless, 1.5 – 1 1/8” |
| Wheels | Alex ATD 470 disc specific rims with TCS (Tubeless Compatible System), 32H, Joytec 6-bolt alloy hubs with QR and 14g stainless steel spokes |
| Tires | Vittoria Zaffiro, 700 x 30c |

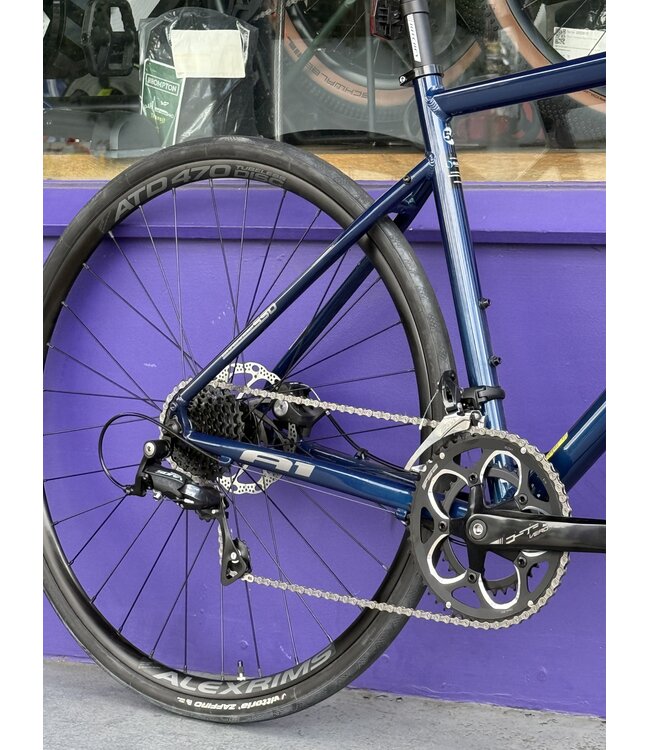

| Derailleurs | Shimano Sora RD-R3000 rear and Sora FD-R3000 front with 31.8mm alloy clamp |
| Shift levers | Shimano Sora ST-R3000 Dual Control STI, 18-speed |
| Chain | KMC Z9 |
| Cassette | Shimano HG201 9-speed, 11-32T |
| Crankset | FSA Vero, 50/34T, 170mm (48/51), 172.5mm (54/56), 175mm (58/61) |
| BB Set | FSA sealed cartridge, 68 x 110.5mm |
| Pedals | Touring platform style, full alloy with toe clips |
| Brakeset | Tektro Lyra mechanical disc brakes and Shimano Sora ST- R3000 STI levers |
| Handlebar | Ritchey Logic, 6061 aluminum, 31.8 x 400mm (48/51) 420mm (54/56), 440mm (58/61) |
| Stem | Ritchey 4-Axis, 3D forged 6061 alloy, 6 ̊ x 90mm (48/51), 100mm (54/56), 120mm (58/61) |
| Grips | Jamis suede tape with gel |
| Seat Post | Ritchey Road, 27.2 x 350mm with alloy clamp |
| Saddle | Selle Royal Asphalt with integrated clip system |
| Sizes | 48, 51, 54, 56, 58, 61cm |
| Color | Midnight Blue |
| Weight | 21.0 lbs |
| MODEL | SIZE | TT EFFECTIVE | HT ANGLE | ST ANGLE | CHAINSTAY | WHEELBASE | FORK RAKE | BB DROP | HEADTUBE | STANDOVER | STACK | REACH |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A1, A2 | 48 | 19.88 / 505 | 70° | 75° | 16 / 415 | 38.89 / 988 | 1.97 / 50 | 2.79 / 71 | 4.92 / 125 | 28.70 / 729 | 20.90 / 531 | 14.15 / 360 |
| A1, A2 | 51 | 20.71 / 526 | 71.5° | 74° | 16 / 415 | 38.97 / 990 | 1.97 / 50 | 2.74 / 69 | 5.71 / 145 | 30.08 / 764 | 21.77 / 553 | 14.39 / 365 |
| A1, A2 | 54 | 21.57 / 548 | 72° | 73° | 17 / 420 | 39.21 / 996 | 1.69 / 43 | 2.68 / 68 | 6.30 / 160 | 30.67 / 779 | 22.44 / 570 | 14.67 / 373 |
| A1, A2 | 56 | 22.01 / 559 | 73° | 73 ° | 17 / 420 | 39.29 / 998 | 1.69 / 43 | 2.68 / 68 | 7.28 / 185 | 31.61 / 803 | 23.55 / 598 | 14.81 / 376 |
| A1, A2 | 58 | 22.48 / 571 | 73° | 73° | 17 / 425 | 39.96 / 1015 | 1.69 / 43 | 2.62 / 66 | 8.07 / 205 | 32.32 / 821 | 24.24 / 616 | 15.07 / 383 |
| A1, A2 | 61 | 22.91 / 582 | 73° | 73° | 17 / 425 | 40.39 / 1026 | 1.69 / 43 | 2.62 / 66 | 8.86 / 225 | 32.99 / 838 | 25.00 / 635 | 15.27 / 388 |
