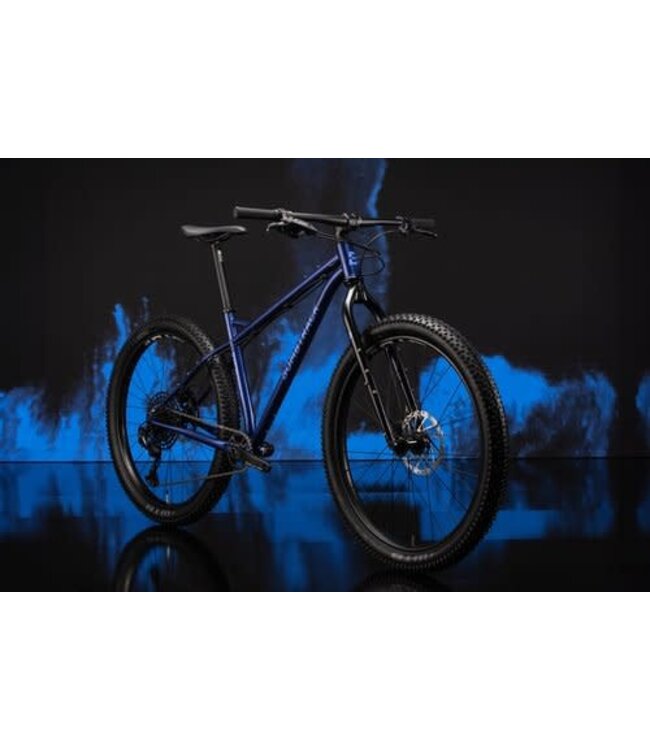

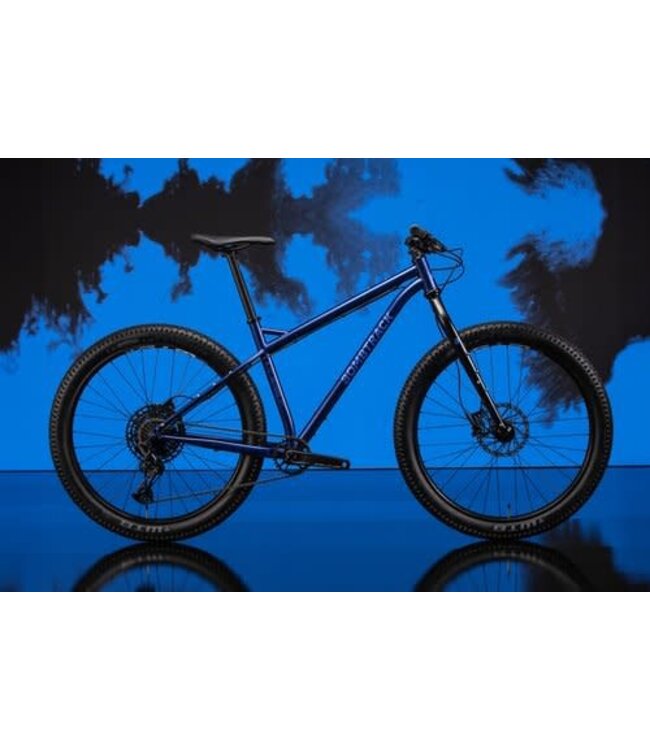

Bombtrack 24 beyond+ Matt Blue Large - 51

Color 1	Matt Blue
Color 2	-
Frame	4130 double butted crmo, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell ¹

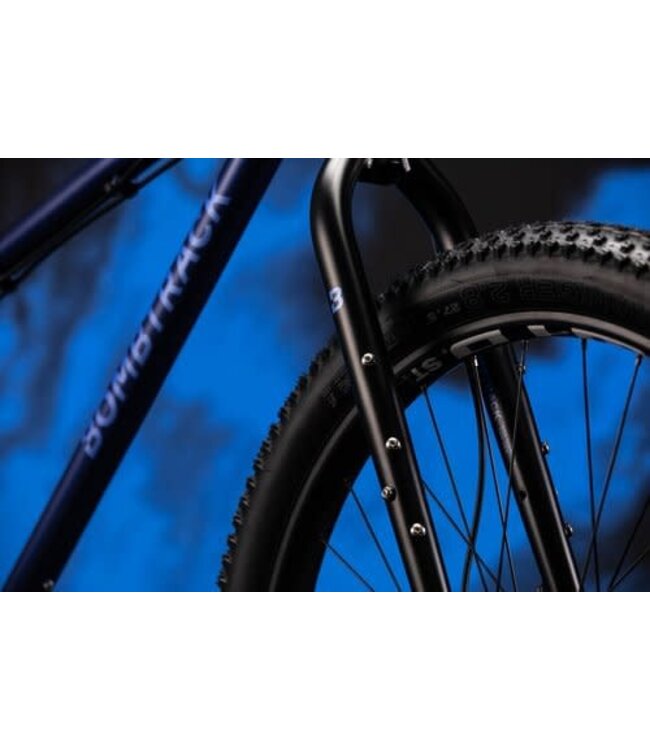

Fork	Seido BPS 4130 crmo, double butted blades, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing

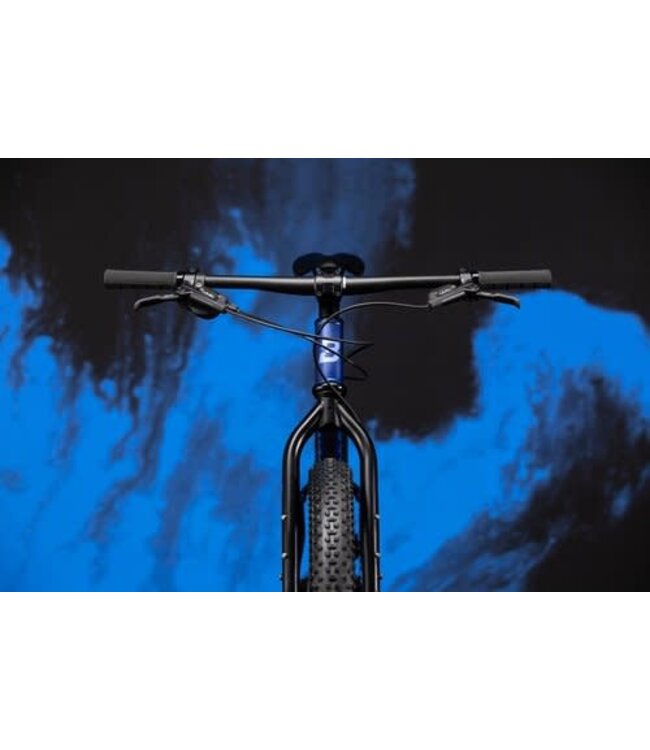

Handlebar	Bombtrack Trail flat bar, 31.8 mm, 9° backsweep, 4° upsweep, 7 mm rise
Grips	Bombtrack Scroll grips
Stem	Bombtrack Tramp forged aluminium stem, 3°
Headset	Sealed semi integrated / external aheadset, 1.1/2'' - 1.1/8''
Levers	Sram Level hydraulic
Shifter	Sram SX-Eagle 12-speed shifter
Brakes	Sram Level hydraulic disc brakes
Rotor	Sram G2 Cleansweep 180 mm front and 160 mm rear rotor
Crankset	Truvativ Stylo 6K aluminium crank, Boost DUB
BB	Sram DUB BSA 73 mm
Pedals	-
Chain	Sram NX Eagle chain, 1/2'' x 11/128'', 116L
Chainring	Sram Eagle X-Sync 2, narrow-wide, 30 T
Cassette	Sram PG-1210 Eagle 12-speed, 11 - 50 T
Front derailleur	-
Rear derailleur	Sram SX Eagle, clutch, long cage

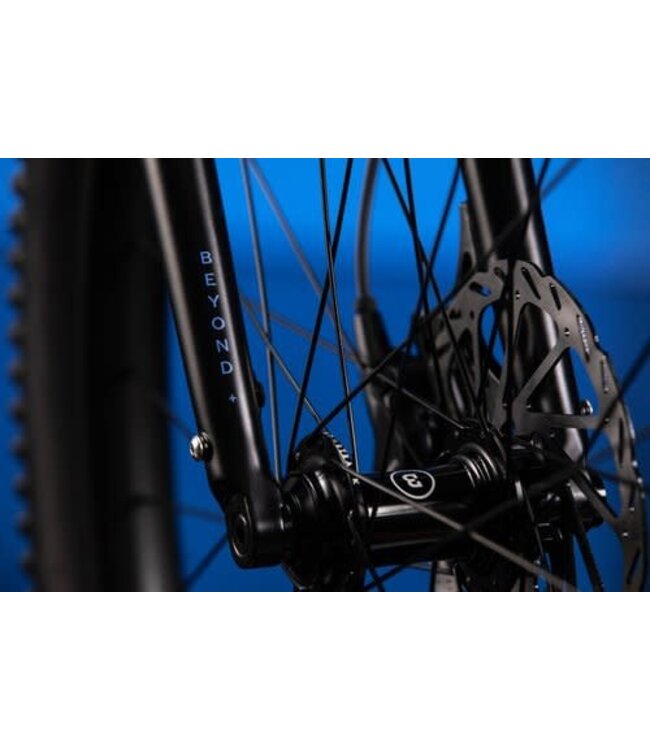

Front hub	Bombtrack Grad Boost sealed hub, 6-bolt disc
Rear hub	Bombtrack Grad Boost sealed hub, HG driver, 6-bolt disc
Through axle	15 x 110 mm / 12 x 148 mm
Front rim	WTB ST i35 double wall, TCS 2.0, 32h
Rear rim	WTB ST i35 double wall, TCS 2.0, 32h
Saddle	Bombtrack Fuzz saddle
Seat post	Bombtrack Yew aluminium seatpost, 30.9 mm x 400 mm
Seat clamp	Bombtrack Origin 34.9 mm
Front tire	WTB Ranger TCS TOUGH / Fast Rolling 27.5'' x 2.8'', tubeless ready
Rear tire	WTB Ranger TCS TOUGH / Fast Rolling 27.5'' x 2.8'', tubeless ready
Fender	-
Rack	-
Kickstand	-
Light	-
Weight	14.4 kg (size M)
Weight frameset	2910 g frame (size M, incl. TA, hanger)
Maximum rider weight	165 kg incl. luggage
ASTM riding condition	3

¹ Triple cage mounts on seat stays might fit cargo cages depending on foot position and shoe size. We can't guarantee sufficient clearance for every possible set up and riding style. Those mounts are not only meant for cages, but can also be used for installing pumps, tools, locks or lights.

Final product may vary in appearance, finish and minor details.

FRAME GEOMETRY

Bike Size	S	M	L	XL
Wheel size	27.5''	27.5''	27.5''	27.5''
Seat Tube Length	406	457	508	559
Horizontal TT length	575	598	622	651
Seat Angle	72.0°	72.0°	72.0°	72.0°
Seat Angle effective	73.8°	73.8°	73.7°	73.7°
Head Angle	68.5°	68.5°	68.5°	68.5°
Headtube Length	100	110	125	135
BB Drop	70	70	70	70
Chainstay Length	450	450	450	450
Fork Offset	51	51	51	51
Trail	87	87	87	87
Wheelbase Length	1111	1135	1160	1188
Standover	750	778	809	836
Reach	395	415	434	459
Stack	621	630	644	653
Front Center	670	694	718	745
Axle to Crown	500	500	500	500
Minimum rider height ¹	1600	1700	1790	1880
Maximum rider height ¹	1710	1810	1900	1990

¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.

HANDLEBAR GEOMETRY

Bike Size	S	M	L	XL
Handlebar type	Flatbar	Flatbar	Flatbar	Flatbar
Width (drops)	-	-	-	-
Width (barends)	720	720	720	720
Reach	-	-	-	-
Flare	-	-	-	-
Backsweep	9°	9°	9°	9°
Drop	-	-	-	-
Upsweep	4°	4°	4°	4°
Rise	7	7	7	7
